Pneumatic Clutch and Brakes - CCB Model
GIRIRAJ INDUSTRIES make Pneumatic Clutch and Brake CCB Model is available in following models- PCB 25,PCB 50,PCB 100,PCB 200,PCB 400,PCB 500,PCB 600,PCB800,CCB 1200,PPCB 1600, find here details like ,torque capacities, clutch torque, break torque, approx weight, maximum speed and stroke volume about PCB Model Pneumatic Clutches and Brakes.
Over view
Our Pneumatic Combination Clutch/Brake comprises of a clutch & spring applied Disc Brake which is air actuated. The Clutch/ Brakes are intricately designed. It has the twin attributes of high thermal capacity & low air consumption which makes it ideal for high speed, high cyclic, heavy-duty industrial application. When cylinder is pressurized, the piston clamps the clutch disc to the hub which transmits the torque to the shaft. When cylinder exhausts, the springs moves the piston in the opposite direction clamping the brake disc & stopping the shaft. The totally cancels out overlap of clutch & Brakes.
The clutch/ brake are housed in a hub which is pressed & keyed to the driven shaft. These plates can be suspended on twelve pins & guide bushes or on two coaxial or non-coaxial bolts.
Application
-
Power Presses
-
Press Brakes
-
Guillotines
-
Printing Machines
-
Wood Working Machines
Features
-
High Thermal Capacity.
-
Stable Coefficient of friction
-
Low Air Consumption
-
Low Operating & Maintenance Cost.
-
Easy removal of worn out linings.
-
High quality
-
Low price
-
Great service
-
Available as per requirements
Pneumatic Clutch and Brakes - HT Model
Our company offer for sale HT Model Pneumatic clutches and pneumatic brakes these are available in HT 300, HT 300, HT 490, HT 1000,HT 1500, HT 2150, HT 2900 models. Find here micro info as-capacities, weigh, sizes, speed, stroke volume, torque of clutch and brakes of Pneumatic clutch and pneumatic brake HT Model

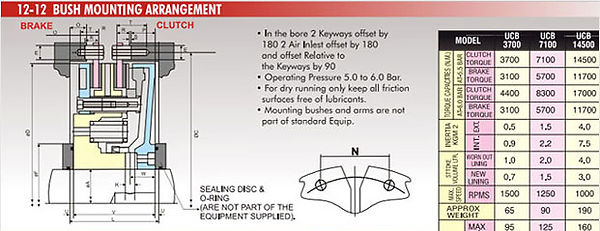

Pneumatic Clutch and Brakes - UCB Model
UCB Model Pneumatic Clutches and Brakes developed and designed by giriraj industries from delhi, india, These are offered in 3 models as- UCB 3700,UCB 7100,UCB 14500,find here info such as weight of pneumatic clutch, maximum speed and stroke volume, torque capacities ,clutch and break torque of Pneumatic Clutch and Brake UCB Models.
